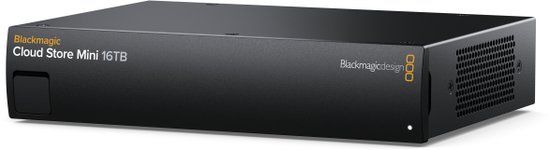

The Blackmagic Cloud Store Mini is a fast network storage solution in a compact rack mount design. It features a high speed 10G Ethernet connection and four internal M.2 flash memory cards operating in parallel RAID 0 for extremely fast file access. It’s fast, even with lots of simultaneous users all accessing files at the same time!

Connections

10G Ethernet Ports

1 x Ethernet 100/1000/10G BASE-T

1G Ethernet Ports

1 x 100/1000 BASE-T

USB-C Port

1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB

HDMI Monitor Outputs

1

Computer Interface

USB-C or Ethernet for shared file access, configuration and software updates.

File Sharing Protocol

Protocol

SMB

Computer Connections

50 max.

Cloud Synchronization

Compatible Services

Dropbox

Google Drive

Storage

Storage Type

M.2 NVMe SSD

Total Capacity

16TB

Displays

HDMI Monitor Out Standards

1080p50, 1080p59.94, 1080p60

Monitor Out Displays

Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

Status Indicator

Front panel LED illuminates white indicating normal operation or red indicating disk fault.

Device Control

External Control

USB-C or Ethernet for configuration and software updates.

Software

Software Included

Blackmagic Cloud Setup Utility

Blackmagic Proxy Generator Lite

Internal software upgrade via Blackmagic Cloud Setup using USB-C port.

Operating Systems

Mac 14.3 Sonoma or later.

Windows 10, 64-bit.
Windows 11.

Power Requirements

Power Supply

Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.

Power Inputs

1 x IEC C14 mains input.

1 x 12V DC locking 5.5 mm barrel connector.

Power Usage

35W

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32°to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing
